GNX USB Controller (HID-Main)
The GNX USB Controller provides USB connectivity for GNX modules to the PC(by default, GNX modules interconnect via BUS cable to each other and GladiatorNXT, but not directly to the PC).
Specifications
- NJoy32 platform
- 32-bit ARM Controllers inside base and grip
- Plug & Play with Driver-Free Installation (Recommended forMost Users)
- Firmware Upgrade via USB
- Onboard Memory for Storing Profiles
- Optional Programming Software Available (For Advanced Users)
- USB 2.0 HID controller
Important:
- MS Windows DirectInput allows for only 8 axis per controller.
- You need 1× GNX-HID USB controller if there are more than 8 axis in yourconfiguration (and another one if there are more than 2×8=16 axis).
How to calculate the number of axis:
- Gladiator NXT base: 3 axis
- Gladiator Premium SCG grip: 3 axis
- Gladiator Standard SCG grip: 1 axis
- GNX-THQ or GNX-THQ-V: 3 axis
- GNX-SEM or GNX-SEM-V: 2 axis
- FSM-GA: 0 axis
Add all axis across your total configuration. Then use above formula todetermine how many GNX USB Controllers you need
Connectivity:
- USB 2.0
Compatible with:
- GNX THQ/V
- GNX FSM-GA
- GNX SEM/V
Contents:

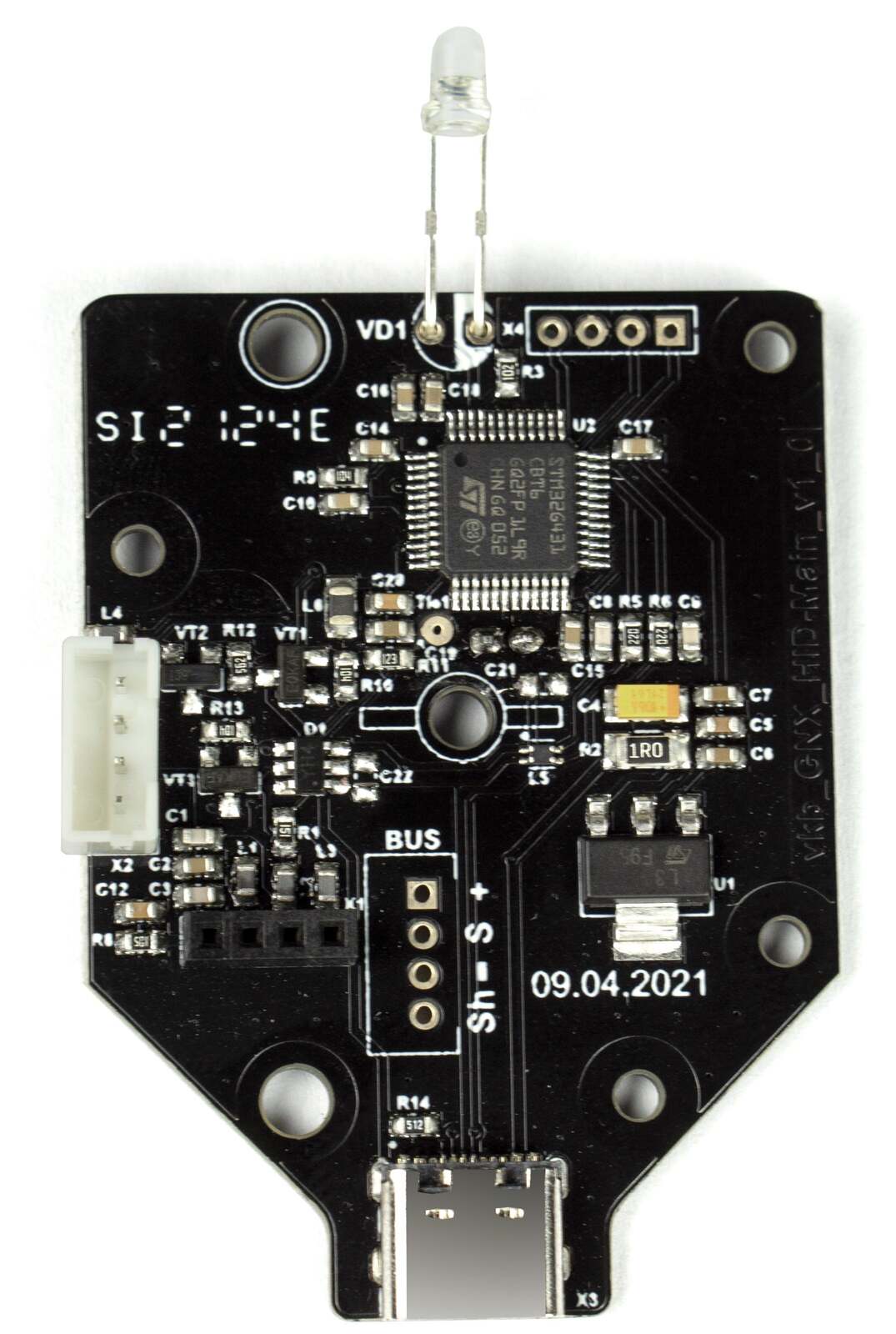

- PCB board
- Set of screws
- USB Type-C cable (180 cm / 6′)
- Transparent rubber lens
